This article assumes the reader is already familiar with the C programming language and some basic concepts concerning hash functions. The target audience (as is often the case on my blog) is undergrad CS students or seasoned developers who, just like me, haven’t learned about Bloom Filters during their University years.

Introduction

If you just want to jump directly into the code, check out this repository.

As Wikipedia states, Bloom Filters are space-efficient, probabilistic data structures, conceived by Burton Howard Bloom in 1970, used to test whether an element is a member of a set or not. What I find peculiar is that the real Mr. Burton Howard Bloom doesn’t have a wiki page, while the imaginary Mr. Leopold Bloom has one.

To keep it short, a Bloom Filter is a data structure where we “add” elements. But after the addition, we cannot recover them. They are chopped and hashed into pieces, and only a tiny footprint of what they once were remains. Afterward, we can ask the filter a pointed question:

[RandomDeveloper]: Is the element E in the set U or not?

The two possible answers a Bloom Filter can give us are:

[BloomFilter]: I am 100% sure the element E is not in U;

Or:

[BloomFilter]: I am almost sure the element E is in U, but I cannot guarantee you that…

For most of the non-critical scenarios you can think of, even the second answer is satisfactory in light of how little space a Bloom Filter occupies. For example, you can check Prof. Michael Mitzenmacher’s presentation “Bloom Filters, Cuckoo Hashing, Cuckoo Filters, Adaptive Cuckoo Filters, and Learned Bloom Filters”, where he describes an ancient use case of Bloom Filters: spellcheckers.

So, once upon a time, when memory was scarce, one of the first spellcheckers was based on a Bloom Filter that occupied just 25KB to determine if 210KB of English words had possible spelling mistakes. Even if things have evolved since then, and spellcheckers don’t (necessarily or exclusively) use Bloom Filters anymore, the numbers remain impressive. 25KB for a killer word editor feature in the early 90s is not bad at all.

However, Bloom Filters were not part of the undergrad curricula I took while studying at the University, and I’ve rarely seen them (directly) used in practice. Even experienced engineers sometimes ignore their properties and advantages and unjustly replace them with Hash Tables or various Set implementations. Again, most programming languages don’t have them implemented in their standard libraries.

On a brighter note, they still fit exceptionally well in various back-end architectures where we need to implement blacklists, or as parts of complex caching systems. For a production implementation, check out RedisBloom.

In any case, what is particularly interesting about Bloom Filters is that even the most straightforward “book implementation” works decently. Compared, for example, to the dark art of implementing an efficient Hash Table, writing yourself an efficient Bloom Filter is much more approachable. You can fit the knowledge of how to write one inside your head without checking a reference book on Data Structures and Algorithms.

How a Bloom Filter actually works

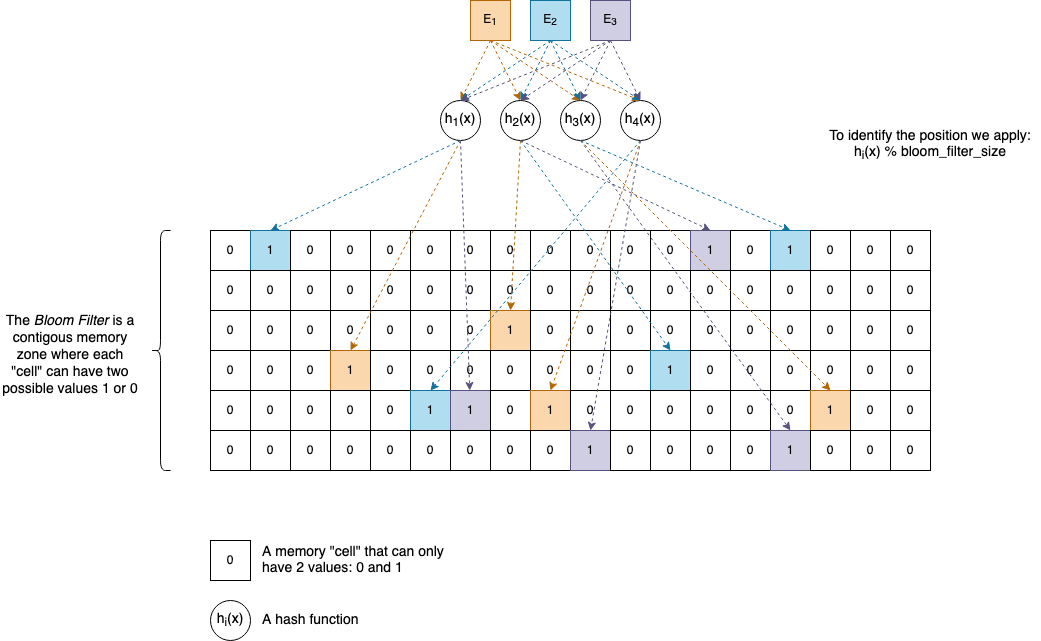

The best way to understand how Bloom Filters work is to “visualize” them:

$E_{1}, E_{2}, E_{3}, \dots$ and so on are the elements we want to add to the Bloom Filter. They can be anything, and you can have as many of them as necessary, given there’s enough memory available.

$h_{1}(x), h_{2}(x), h_{3}(x), h_{4}(x), \dots$ and so on are (non-cryptographic) hash functions. A Bloom Filter can have as many hash functions associated with it as you want, but usually, in practice, software developers pick a number between 4 and 8. In the section called Interesting ideas to explore, you will see why it’s not necessarily needed to have strictly separate hash functions. One or two are enough to generate the others.

For practical reasons, let’s suppose our functions return uint32_t values, which are natural numbers between $0$ and $2^{32}-1$.

Internally, a Bloom Filter has an array-like memory zone associated with it where elements can have only two values: 0 and 1. It’s up to us how we organize this area, but the classical implementation uses a Bit Vector (described later in the article).

Given an element $E$, to insert it into the Bloom Filter, we perform the following actions:

1. We compute the hash values of $E$ by applying each of the hash functions: $h_{1}(E), h_{2}(E), h_{3}(E), h_{4}(E)$.
2. The hash values are uint32_t numbers, so we apply % bloom_filter_size (modulo) to find the actual cells’ positions inside the array. We set those positions to 1.

To check if an element $E$ is not in a Bloom Filter, we compute the hash values, and we test the bits to see if they are all 1s.

So, if our Bloom Filter uses 4 hash functions, then for our element $E$, 4 bits in the array will be 1. If an element is already set to 1, we don’t perform any change.

Of course, hash collisions can happen—when two distinct elements $E_{1}$ and $E_{2}$ have the same hash value.

If the Bit Vector size is too small, the 1s can also start to overlap with each other, creating what we call false positives.

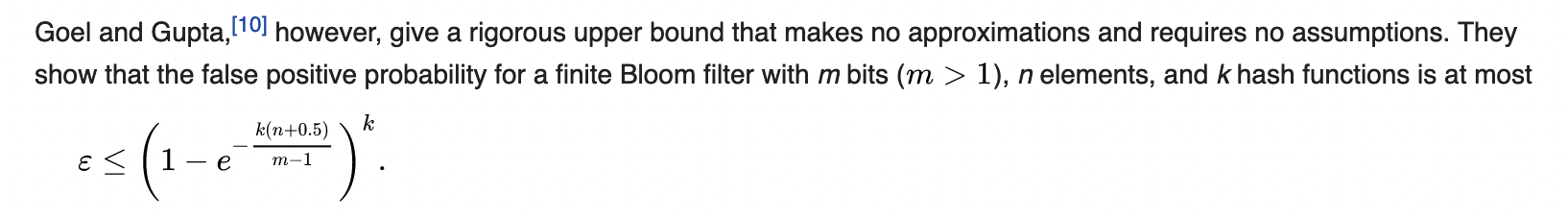

If you are curious about the math behind it and how to calculate the probability of false positives, the Wikipedia article is quite good:

$\varepsilon$ is the false positive rate, and to keep it under control, we can fine-tune the actual values of $k$, $n$, and $m$.

The implementation

The full code of this article can be found in this GitHub repo:

git clone git@github.com:nomemory/bloomfilters-c.git

Bit Vector

We assume that for our platform 1 byte is always 8 bits.

Before jumping directly into implementing a Bloom Filter, we first need to implement an auxiliary data structure called a Bit Vector (also known as a Bit Array).

A Bit Vector is an array data structure that compactly stores bits, meaning that all the elements from this particular array are either 0 or 1. But in the C programming language, there is no data type as small as 1 bit. The smallest you can get is char, which is 8 bits, or uint8_t (and its signed counterpart int8_t), which is also 8 bits. It would be a shame to use that much space to store either a 1 or 0 in 8 bits when you actually need only one.

Initially, I wanted to use xtrapbits.h, a bulletproof macro implementation that has worked since 1987—simply put, a piece of code that’s about my age. Eventually, I opted to write my own straightforward implementation, which you can find in bitutil.c and bitutil.h, stripping down the functionality to exactly what I need in the context of Bloom Filters.

Unfortunately, C doesn’t provide support at the language level for Bit Vectors, but fortunately, through the use of pointers and bitwise operations, we can implement them ourselves.

Our Bit Vector will be composed of small uint32_t chunks of memory, but each of those chunks will contain 32 possible values of 1s and 0s.

typedef struct bit_vect_s {
    uint32_t *mem;
    size_t size;        // The number of bits
} bit_vect;

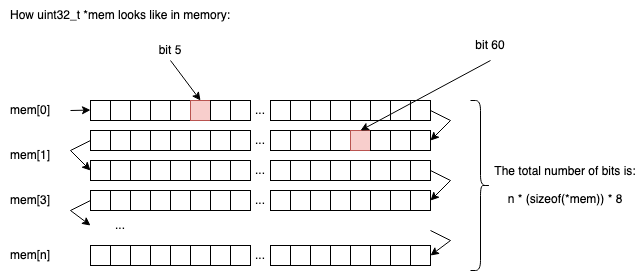

From a memory perspective, things will look like this:

So in n chunks of uint32_t, we will be able to store n * sizeof(uint32_t) * 8 elements (1s or 0s).

If n = 2, we would be able to store 2 * 4 * 8 = 64 bits.

If n = 3, we would be able to store 3 * 4 * 8 = 96 bits.

… and so on.

Allocating memory for a new Bit Vector

The method to allocate memory for a new Bit Vector has the following signature, where num_bits represents the (exact) number of bits our Bit Vector will contain:

bit_vect *bit_vect_new(size_t num_bits) ...

Implementing it is relatively straightforward; the only “math” involved is finding out how many uint32_t chunks we need to allocate, as the input parameter num_bits is not necessarily a multiple of sizeof(uint32_t) * 8.

For example, if num_bits = 71, we need at least 3 uint32_t chunks: 2 of them will be fully utilized, and from the third one, we will use only 7 bits out of the 32 available—a compromise in wasted resources we can easily live with.

To put this into code, we will start by declaring the following macros:

#define BITS_IN_BYTE 8
#define BITS_IN_TYPE(type) (BITS_IN_BYTE * (sizeof(type)))

• BITS_IN_BYTE: On most modern systems, we expect this number to be 8, but it’s better to isolate this in a constant than to have magic numbers in our code.
• BITS_IN_TYPE: A function macro that computes the total number of bits associated with a type. If we call BITS_IN_TYPE(uint32_t), the result will be 32 on most modern systems.

Later Edit: User nimaje on GitHub mentioned that in <limits.h> there’s already a constant CHAR_BIT that holds the exact number of bits of a char. Instead of defining your own BITS_IN_BYTE constant, it’s a better practice to use this one.

Then we write the actual memory allocator, bit_vect_new:

bit_vect *bit_vect_new(size_t num_bits) {
    bit_vect *vect = malloc(sizeof(*vect));
    if (NULL == vect) {
        fprintf(stderr, "Out of memory.\n");
        exit(EXIT_FAILURE);
    }
    size_t mem_size = num_bits / BITS_IN_TYPE(uint32_t);
    // If num_bits is not a multiple of BITS_IN_TYPE(uint32_t)
    // we add one more chunk that will be partially occupied
    if (num_bits % BITS_IN_TYPE(uint32_t) != 0) {
        mem_size++;
    }
    vect->mem = calloc(mem_size, sizeof(*(vect->mem)));
    if (NULL == vect->mem) {
        fprintf(stderr, "Out of memory.\n");
        exit(EXIT_FAILURE);
    }
    vect->size = num_bits;
    return vect;
}

Freeing the memory for a bit_vect is straightforward and is done in two steps, in this exact order:

• Free the memory associated with bit_vect->mem first;
• Free the memory associated with the bit_vect struct itself second;

void bit_vect_free(bit_vect *vect){
    free(vect->mem);
    free(vect);
}

Getting the value of the nth bit

The function that gets the value of the nth bit from our Bit Vector looks like this:

bool bit_vect_get(bit_vect *vect, size_t bit_idx) {
    if (bit_idx >= vect->size) {
        fprintf(stderr, "Out of bounds bit_idx=%zu, vect->size=%zu\n",
                            bit_idx, vect->size);
        exit(EXIT_FAILURE);
    }
    size_t chunk_offset = bit_idx / BITS_IN_TYPE(uint32_t);
    size_t bit_offset = bit_idx & (BITS_IN_TYPE(uint32_t) - 1);
    uint32_t byte = vect->mem[chunk_offset];
    return (byte >> bit_offset) & 1;
}

Firstly, it performs sanity checks on the input (bit_idx) to see if the nth bit we are looking for is within our memory bounds.

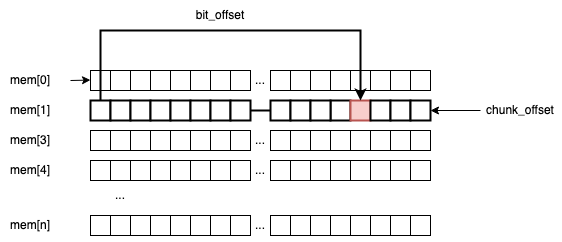

Secondly, we need to compute two offsets to determine exactly where the memory location (the bit) we are looking for is situated:

• chunk_offset is the uint32_t frame that holds the bit.
• bit_offset is the actual position of the bit inside that specific uint32_t chunk.

For example, if we are searching for bit_idx = 60, then: chunk_offset = 60 / 32 = 1, and bit_offset = 60 % 32 = 28.

The line bit_idx & (BITS_IN_TYPE(uint32_t) - 1) can be a little confusing because you would typically expect the % operation to get the remainder instead of & (32 - 1). This simple bitwise trick makes the code more efficient by reducing the number of heavy modulo operations on the CPU. It only works if the divisor is a pure power of two (lucky us). I’ve already explained it here.

The last line, (byte >> bit_offset) & 1, extracts the actual value of the bit (by right-shifting the uint32_t to the bit_offset and masking it).

Setting the value of the nth bit

The corresponding code for this operation is the following:

void bit_vect_set(bit_vect *vect, size_t bit_idx, bool val) {
    if (bit_idx >= vect->size) {
        fprintf(stderr, "Out of bounds bit_idx=%zu, vect->size=%zu\n",
                            bit_idx, vect->size);
        exit(EXIT_FAILURE);
    }
    size_t chunk_offset = bit_idx / BITS_IN_TYPE(uint32_t);
    size_t bit_offset = bit_idx & (BITS_IN_TYPE(uint32_t) - 1);
    uint32_t *byte = &(vect->mem[chunk_offset]);

    if (val) {
        // Sets the bit `bit_idx` to 1 (true)
        *byte |= ((uint32_t)1) << bit_offset;
    } else {
        // Sets the bit `bit_idx` to 0 (false)
        *byte &= ~(1 << bit_offset);
    }
}

Yet again, we compute the chunk_offset and bit_offset, and then branch off:

• *byte |= ((uint32_t)1) << bit_offset sets the corresponding bit to 1.
• *byte &= ~(1 << bit_offset) sets the corresponding bit to 0.

The hash functions

Just like Hash Tables (previously explained in this article), Bloom Filters make heavy use of Hash Functions. It’s not the purpose of this article to deeply explain how Hash Functions work, as I’ve already done my best here.

My rule of thumb is to use the sdbm and djb2 functions in toy implementations, and something much more advanced like MurmurHash, FNV, or spookyhash for serious production stuff. Recently I’ve also played with chunky64, and the results are good, though I am not sure how widely used it is in the real world yet.

But as I said, the two hash functions I’m going to be using in this article are sdbm and djb2. They are extremely simple, and they work decently enough for our purpose:

uint32_t djb2(const void *buff, size_t length) {
    uint32_t hash = DJB2_INIT;
    const uint8_t *data = buff;
    for(size_t i = 0; i < length; i++) {
         hash = ((hash << 5) + hash) + data[i];
    }
    return hash;
}

uint32_t sdbm(const void *buff, size_t length) {
    uint32_t hash = 0;
    const uint8_t *data = buff;
    for(size_t i = 0; i < length; i++) {
        hash = data[i] + (hash << 6) + (hash << 16) - hash;
    }
    return hash;
}

The only improvement I would make on these two would be to increase the data reading frame size from uint8_t to something larger to reduce the overall number of bitwise operations per string length.

Next, we need to make sure our hash functions share the exact same signature so we can typedef them for further use:

typedef uint32_t (*hash32_func)(const void *data, size_t length);

The main idea is that our Bloom Filter will receive several hash functions in its initialization phase, so doing an alias on the type (by using typedef) will make our code much more readable when we pass the function pointers.

The Bloom Filter

The “interface”

The Bloom Filter interface looks like this:

typedef uint32_t (*hash32_func)(const void *data, size_t length);

typedef struct bloom_filter_s {
    bit_vect *vect;
    hash32_func *hash_functions;
    size_t num_functions;
    size_t num_items;
} bloom_filter;

bloom_filter *bloom_filter_new(size_t size, size_t num_functions, ...);
bloom_filter *bloom_filter_new_default(size_t size);
void bloom_filter_free(bloom_filter *filter);
void bloom_filter_put(bloom_filter *filter, const void *data, size_t length);
void bloom_filter_put_str(bloom_filter *filter, const char *str);
bool bloom_filter_test(bloom_filter *filter, const void *data, size_t length);
bool bloom_filter_test_str(bloom_filter *filter, const char *str);

It’s nothing fancy, just a simple API:

• struct bloom_filter_s defines the internal data structure:
  • A bit_vect where we keep our 1s and 0s;
  • num_items represents the number of elements inserted;
  • hash_functions and num_functions keep track of the internal hash functions.

Allocating and deallocating memory

The code for allocating dynamic memory for our newly defined struct (bloom_filter) is the following:

bloom_filter *bloom_filter_new(size_t size, size_t num_functions, ...) {
    va_list argp;
    bloom_filter *filter = malloc(sizeof(*filter));
    if (NULL == filter) {
        fprintf(stderr, "Out of memory.\n");
        exit(EXIT_FAILURE);
    }
    filter->num_items = 0;
    filter->vect = bit_vect_new(size);
    filter->num_functions = num_functions;
    filter->hash_functions = malloc(sizeof(hash32_func) * num_functions);
    if (NULL == filter->hash_functions) {
        fprintf(stderr, "Out of memory.\n");
        exit(EXIT_FAILURE);
    }

    va_start(argp, num_functions);
    for(int i = 0; i < num_functions; i++) {
        filter->hash_functions[i] = va_arg(argp, hash32_func);
    }
    va_end(argp);

    return filter;
}

bloom_filter *bloom_filter_new_default(size_t size) {
    return bloom_filter_new(size, 2, djb2, sdbm);
}

void bloom_filter_free(bloom_filter *filter) {
    bit_vect_free(filter->vect);
    free(filter->hash_functions);
    free(filter);
}

To an inexperienced eye, the only thing that might look confusing is the ... notation in the bloom_filter_new method signature. bloom_filter_new is basically a variadic function that accepts an arbitrary number of parameters after num_functions. Those parameters are the actual hash functions (hash32_func).

Adding an element

The code for adding an element to the Bloom Filter is as follows:

• We iterate through all the hash_functions;
• We compute the hash values, and we set the corresponding bits to 1 in the bit vector.

void bloom_filter_put(bloom_filter *filter, const void *data, size_t length) {
    for(int i = 0; i < filter->num_functions; i++) {
        uint32_t cur_hash = filter->hash_functions[i](data, length);
        bit_vect_set(filter->vect, cur_hash % filter->vect->size, true);
    }
    // We've just added a new item, so we increment the value
    filter->num_items++;
}

C doesn’t support polymorphism, so to make adding a string (char*) to the filter simpler, we simply write a helper function wrapper:

void bloom_filter_put_str(bloom_filter *filter, const char *str) {
    bloom_filter_put(filter, str, strlen(str));
}

Testing if an element exists

The code for testing if an element exists in the Bloom Filter is the following:

• We iterate through all the hash_functions;
• We compute the hash values and check the corresponding bits in the bit_vect.

bool bloom_filter_test(bloom_filter *filter, const void *data, size_t length) {
    for(int i = 0; i < filter->num_functions; i++) {
        uint32_t cur_hash = filter->hash_functions[i](data, length);
        if (!bit_vect_get(filter->vect, cur_hash % filter->vect->size)) {
            return false;
        }
    }
    return true;
}

bool bloom_filter_test_str(bloom_filter *filter, const char *str) {
    return bloom_filter_test(filter, str, strlen(str));
}

Using the Bloom Filter

#include <stdio.h>
#include <stdlib.h>

#include "bloom.h"

int main(int argc, char *argv[]) {

    bloom_filter *filter = bloom_filter_new_default(1024);
    bloom_filter_put_str(filter, "abc");

    printf("%d\n", bloom_filter_test_str(filter, "abc"));
    printf("%d\n", bloom_filter_test_str(filter, "bcd"));
    printf("%d\n", bloom_filter_test_str(filter, "0"));
    printf("%d\n", bloom_filter_test_str(filter, "1"));

    bloom_filter_put_str(filter, "2");
    printf("%d\n", bloom_filter_test_str(filter, "2"));

    return 0;
}

Output:

1
0
0
0
1

Interesting ideas to explore

Re-use hash functions

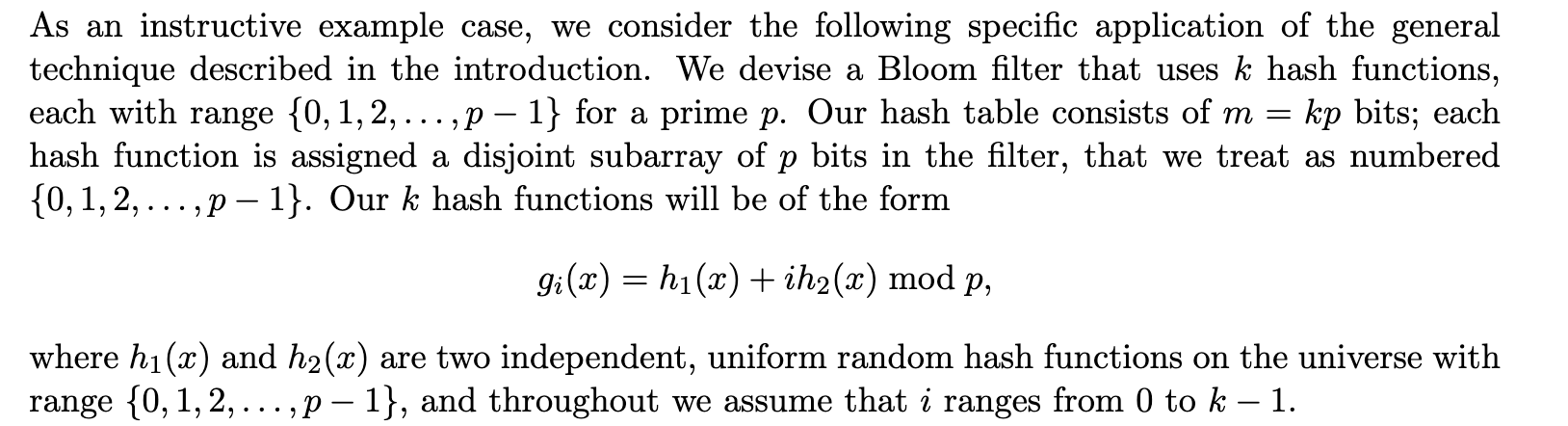

Following a discussion on Reddit, Chris Wellons suggested the fact that Bloom Filters don’t actually need completely unique $k$ functions. We can have just one that generates a single solid 64-bit hash value, and from that value, through permutations, we can efficiently generate as many new hash values as we want:

uint64_t hash64(void *buf, size_t len);
uint64_t permute64(uint64_t x, uint64_t key);

uint64_t bufhash = hash64(buf, len);
uint32_t hashes[K];
for (int i = 0; i < K; i++) {
    hashes[i] = permute64(bufhash, i);
}

Where permute64 might look like:

uint64_t permute64(uint64_t x, uint64_t key)
{
    x += key;
    x ^= x >> 30;
    x *= 0xbf58476d1ce4e5b9U;
    x ^= x >> 27;
    x *= 0x94d049bb133111ebU;
    x ^= x >> 31;
    return x;
}

Another interesting idea for avoiding the use of multiple (separate) hash functions comes from Building a Better Bloom Filter. The authors suggest that just two hash functions, $h_{1}(x)$ and $h_{2}(x)$, are mathematically enough to linearly generate others in the form $g_{i}(x)$:

Articles, C implementations, and References

If you want to read more about how to implement Bloom Filters in the C language, you can check out this article: “How to write a better Bloom Filter” by Drew DeVault.

Another interesting C implementation is bloomd, which is a Network Daemon for Bloom Filters written by Armon Dadgar, and even if the project doesn’t seem to be maintained anymore, it is quite an exciting piece of software to look at.

Other references:

• Bloom Filters - Much, much more than a space-efficient hashmap!
• A Little Bloom Filter Theory (and a Bag of Filter Tricks)
• Bloom Filters

Going further

A proposed efficient alternative to Bloom Filters is the Cuckoo Filter, but before speaking on that, I need to do my homework first!
